How to handle provider onboarding and identity verification on FTW

This article describes how to take Stripe Connect Onboarding into use in your frontend application or how to implement your own flow.

Table of Contents

Introduction

Flex offers two different mechanisms for creating a provider verification process where providers can enter all necessary and required information for them to receive payments. You can either choose to use ready-made tools provided by Stripe (Stripe Connect Onboarding) or implement your own flow.

This article describes these two approaches.

Stripe Connect Onboarding

Regulatory aspects of provider onboarding can be challenging and changing rapidly. Stripe Connect Onboarding provides ready tools for meeting the requirements and reducing the operational complexity of self-managing the onboarding flow and identity verification. Below are listed the changes required to implement Stripe Connect Onboarding. If you are using the latest Flex Template for Web (FTW-daily v4.0.0 or FTW-hourly v5.0.0 or later, or any FTW-product), you need to complete only the first step - if you are upgrading your own implementation, follow the rest of the instructions.

1. Enable Stripe Connect Onboarding in Stripe Dashboard

You need to navigate to Connect settings page in your Stripe Dashboard. For the Connect onboarding to work, you need to provide name, color, and icon for your marketplace.

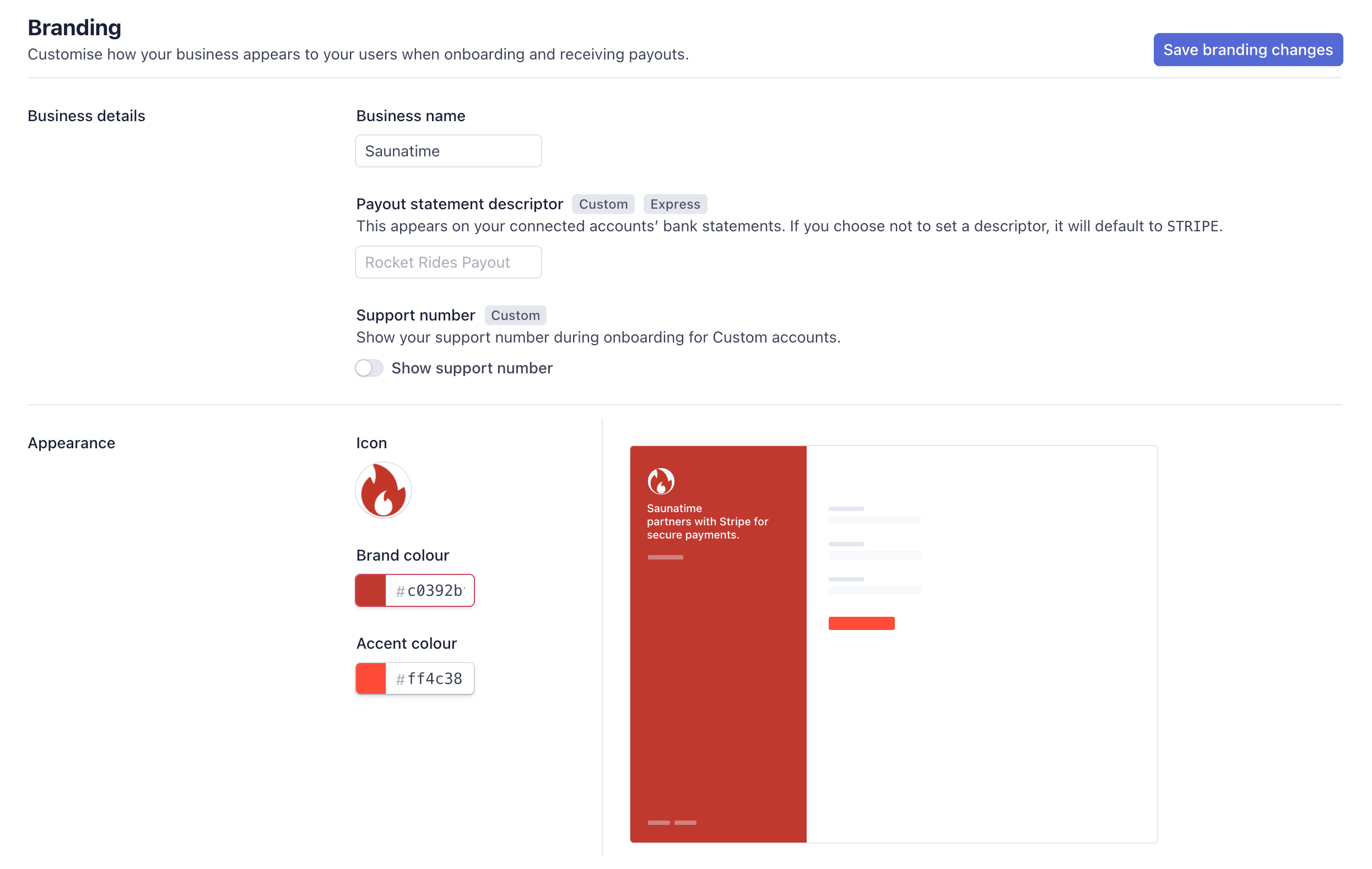

Stripe dashboard

Following steps are already implemented in FTW-daily v4.0.0 and FTW-hourly v5.0.0 or later - and in FTW-product

In FTW there are new components StripePayoutPage, StripeConnectAccountForm, and a new shared duck file stripeConnectAccount.duck.js where the Connect onboarding is mostly handled. You can also check out PR #1234 where you can find all the code changes.

2. Creating provider Stripe Account

With Stripe Connect Onboarding, you need to collect minimum information from your providers when creating a Stripe Account for them. It's recommended for you to pass the following information in the create-stripe-account call:

  • country: A mandatory field determining the country of residence for the provider.
  • bankAccountToken: Stripe bank account token for the user. Recommended to pass in at this phase to minimize the steps in the onboarding process.
  • requestedCapabilities: Required capabilities for payments to work in Flex are card_payments and transfers. You can read more about capabilities from our article regarding Capabilities

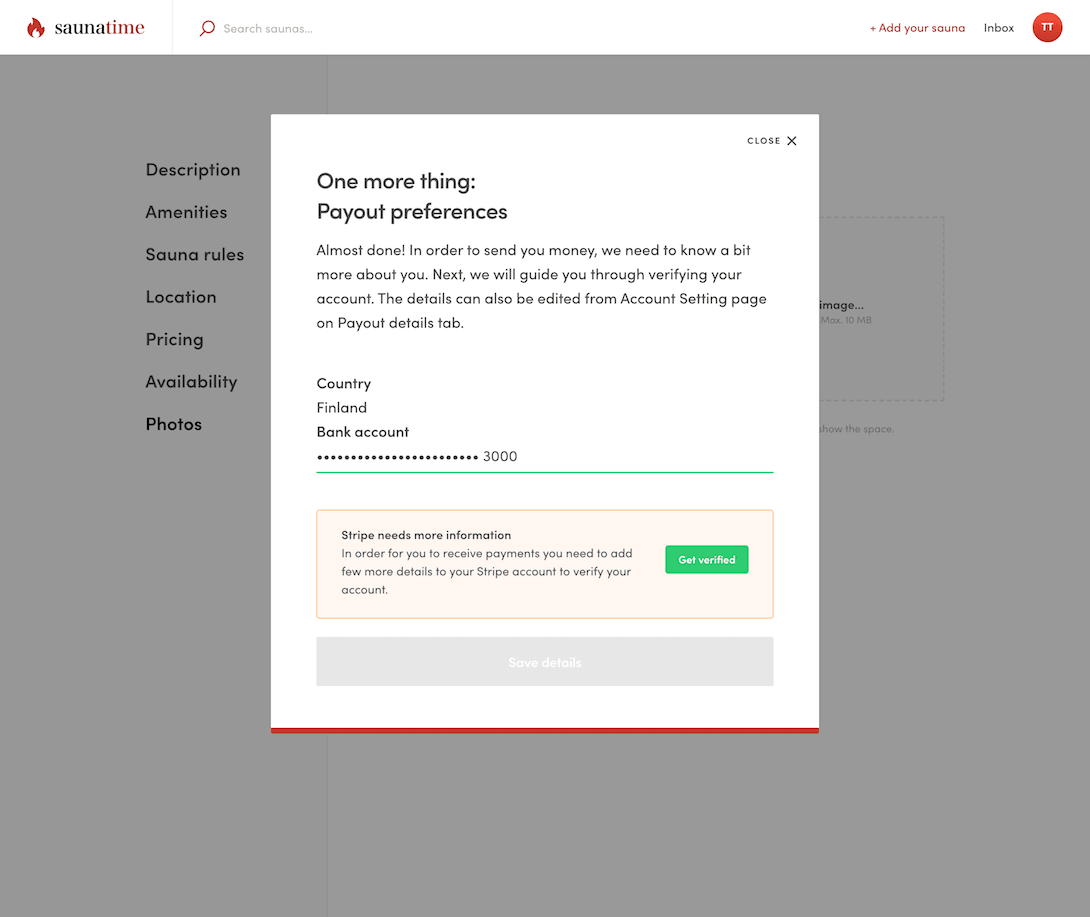

Creating Stripe account

Note: In the EditListingWizard component, the modal with StripeConnectAccountForm is shown if the user doesn't have a Stripe Account yet or if there is some information missing from the account. The modal will be shown only if the user is publishing the listing. This means that users can update already published listing even if their Stripe Account is in the restricted state but they can't publish new listings.

3. Fetching information about a Stripe Account

If the user already has a Stripe Account you need to fetch the up-to-date account data from Stripe through Flex API. This way we can warn the users if there is some required information missing from their Stripe Account.

The account data is returned after each create and update Stripe Account API call so there is no need for separate fetch API call in these cases.

In FTW the Stripe Account is fetched in loadData function on StripePayoutPage.duck.js. Quite similar loadData funciton is also used on EditListingPage. More information about data loading you can find from the article How routing works in FTW.

After the Stripe Account has been fetched we need to check requirements of the stripeAccountData attribute which contains the related Stripe Account Object. If there are any fields in past_due or currently_due it means that those fields need to be collected to keep the account enabled. In other words, there are requirements missing. If there are no fields in past_due or currently_due it means that the verification is completed for now. It is still possible that there might be new fields to be collected if the account reaches the next volume thresholds.

Stripe Account Links are a mechanism for enabling your providers to access Stripe Connect Onboarding UI. You need to create an account link and provide the return URLs for success and failure cases. After creating an account link the user will be redirecet to Connect onboarding.

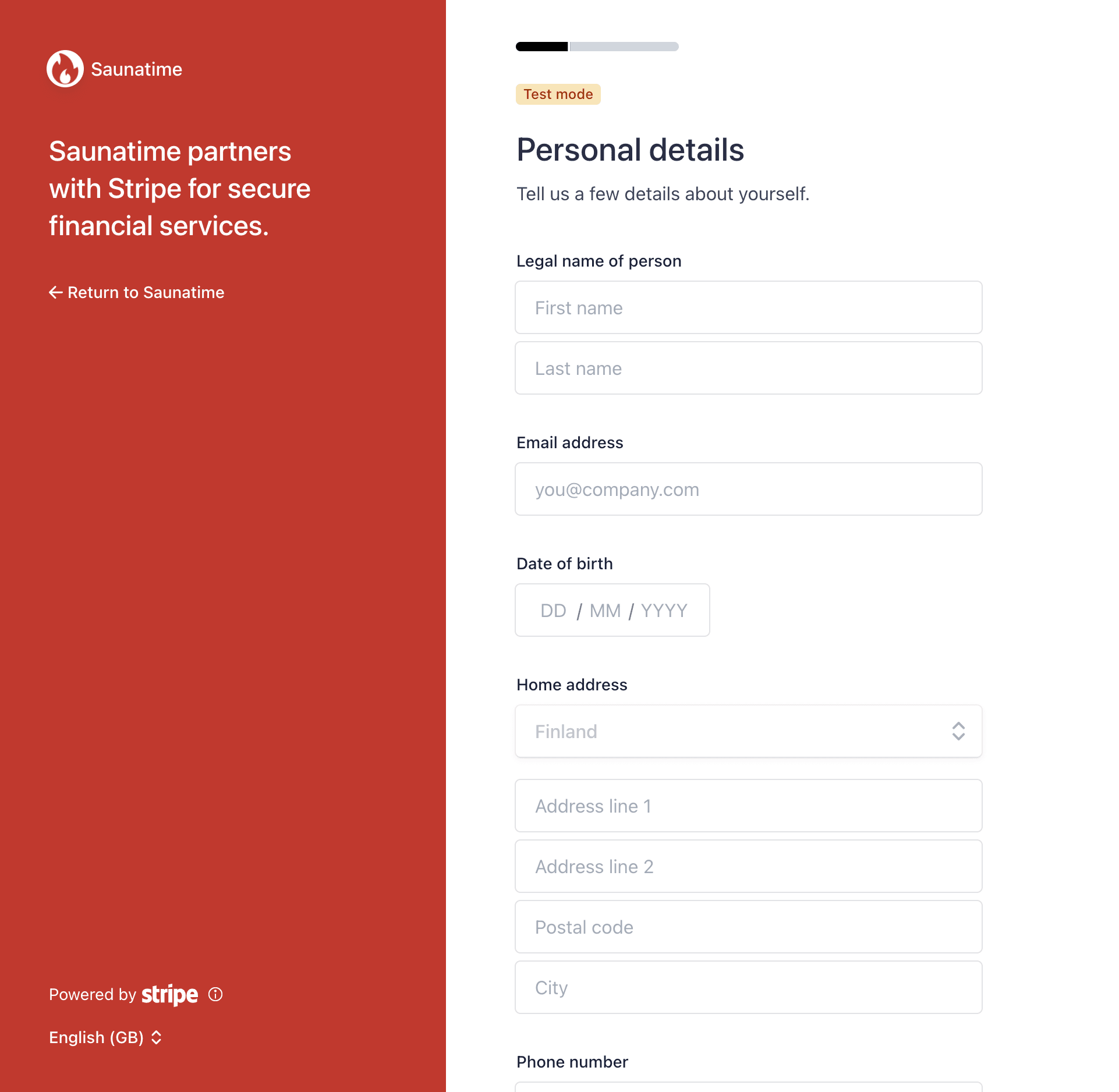

Connect onboarding

If there are any requirements missing from the Stripe Account we will create a custom_account_verification link. Otherwise, we will create a custom_account_update link. By default, we will use currently_due as a collect type. A new Account Link is created only when the user clicks the link to go to Connect onboarding to make sure the link will not expire. When the Account Link is returned the user is redirected to Connect Onboarding.

When creating the Account Link we need to provide success and failure URLs where user will be redirected after onboarding. These routes with URL parameter need to be added to routeConfiguration.js.

E.g. StripePayoutPage with URL parameter

    {
      path: '/account/payments/:returnURLType',
      name: 'StripePayoutOnboardingPage',
      auth: true,
      authPage: 'LoginPage',
      component: props => <StripePayoutPage {...props} />,
      loadData: StripePayoutPage.loadData,
    }

If the user returns to the success URL, we still need to check the status of the Stripe Account again. Returning to success URL doesn't automatically mean that the account has all the required information.

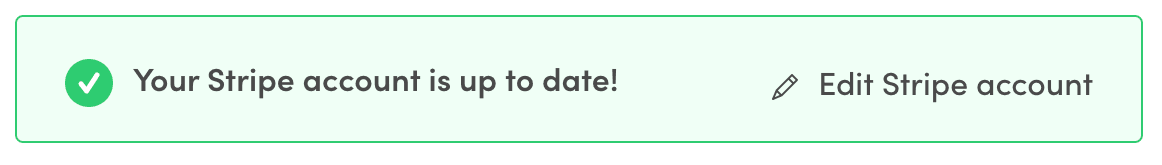

  • If there are no requirements missing from the Stripe Account, the status box is in verificationSuccess mode

    success view

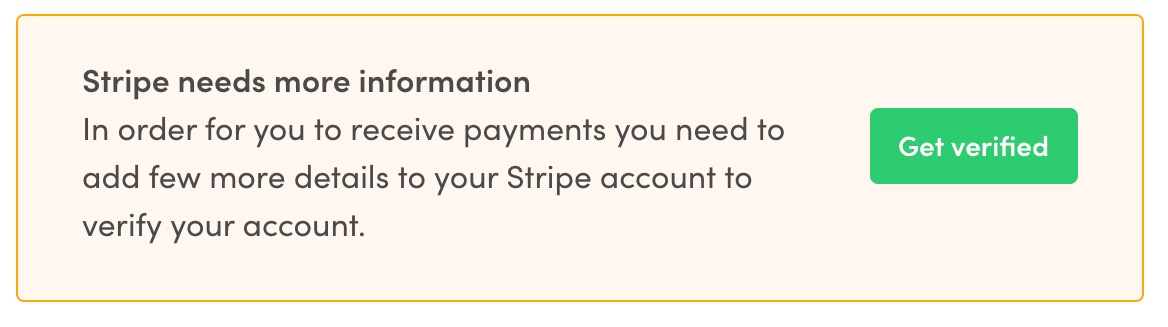

  • If there is still something missing from the Stripe Account, the status box is in verificationNeeded mode

    verification needed view

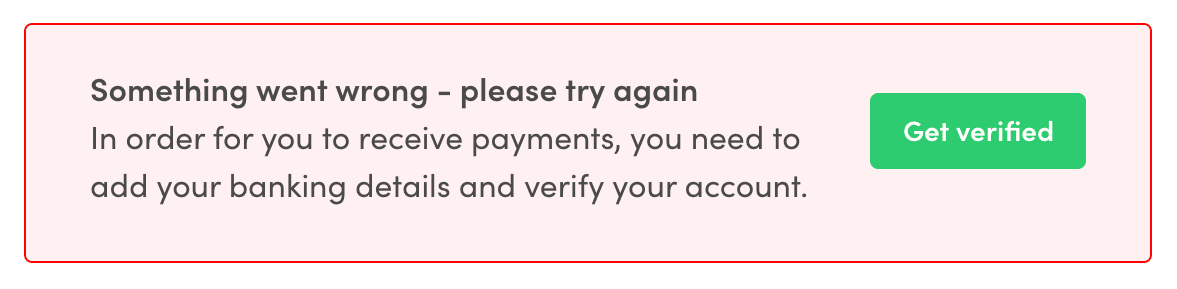

  • If the user returned to failure URL, the status box is in verificationError mode. Failure can happen e.g. if the Connect onboarding page was refreshed or if the Account Link had already expired

    fail view

5. Updating provider Stripe account

Most of the information related to Stripe Account like email or address can be updated from Stripe's Connect onboarding. For updating this information we need to create a new Account Link and redirect user back to Connect onboarding.

Only thing we manage on the FTW side is updating the bankAccountToken of the Stripe Account. This means that if the provider want's to update their bank account number (e.g. IBAN), it's handled by passing a new bankAccountToken to update Stripe Account API endpoint.

Note: Currently, Stripe doesn't support updating the country of the account after the account has been created.

Using custom flow

It's also possible to implement the onboarding flow in your own application. This way the user will stay in your application throughout the whole onboarding. The downside with this approach is that you are responsible for collecting all the required information and keeping the UI up-to-date also with the possible future changes.

Before FTW-daily v4.0.0 and FTW-hourly v5.0.0 the Stripe onboarding was implemented like this also in FTW. There are some now deprecated components you can use as a starting point if you want to implement your own flow. You should keep in mind that these components will not be updated by our team since FTW will use Connect Onboarding by default.

Collecting required information

When onboarding Custom accounts, you need to collect the required information for each account (which Stripe verifies). The information you need to collect depends on factors such as the capabilities and the country the account is based in. You can find the requirements from Stripe's Required verification information documentation. You should keep in mind that depending on the situation, you might need to collect a scan of an ID document, an address document, or both to enable payouts so you may need to implement a way to upload these.

After you have collected the information you need to obtain a new account token via Stripe API, through the same Stripe platform account as the one used by the marketplace. This account token should be passed to Flex API when creating or updating the Stripe Account.

Updating the Stripe Account

Before FTW-daily v4.0.0 and FTW-hourly v5.0.0 it was not possible to update a Stripe Account through user's account settings. However, if you decide to use your own custom flow you should concider implementing a way to check the status of a Stripe Account and collect more information about the user when it's required. Otherwise, the Stripe Account might get restricted and payouts to the provider will fail.

Using deprecated PayoutDetailsForm and PayoutDetailsPage as a starting point

We have deprecated the old PayoutDetailsForm and PayoutPreferencesPage where the custom flow for onboarding was implemented. Also, functions related to the deprecated form have been removed from stripe.duck.js. If you want to keep using the custom form in your own application, you can take these deprecated components as a starting point but you should keep in mind that they will not be updated by our team.

You can find the deprecated files still from v.3.7.0

When to require provider onboarding?

The default Flex Stripe integration requires the payout Connect account information immediately upon beginning a transaction. For this reason, the FTW templates do not allow booking listings that do not have provider payout information. The templates have also been configured to require provider onboarding and payout information before publishing any listings.

However, it is possible to modify this behavior. The simplest way to allow publishing a listing without adding payout details is to modify the handlePublishListing function in the src/components/EditListingWizard/EditListingWizard.js in file. The function checks whether the user is connected to Stripe, and only calls the onPublishListingDraft function if Stripe is connected and there are no requirements missing. By removing the Stripe checks and immediately calling onPublishListingDraft with the parameter id, you can bypass the payout details modal completely.

The default behavior of the template in this situation is that once the listing is published, a provider with no Stripe payout details is shown a modal indicating that the listing cannot be booked before they add their payout details. The provider can choose to enter their payout details or click "Later".

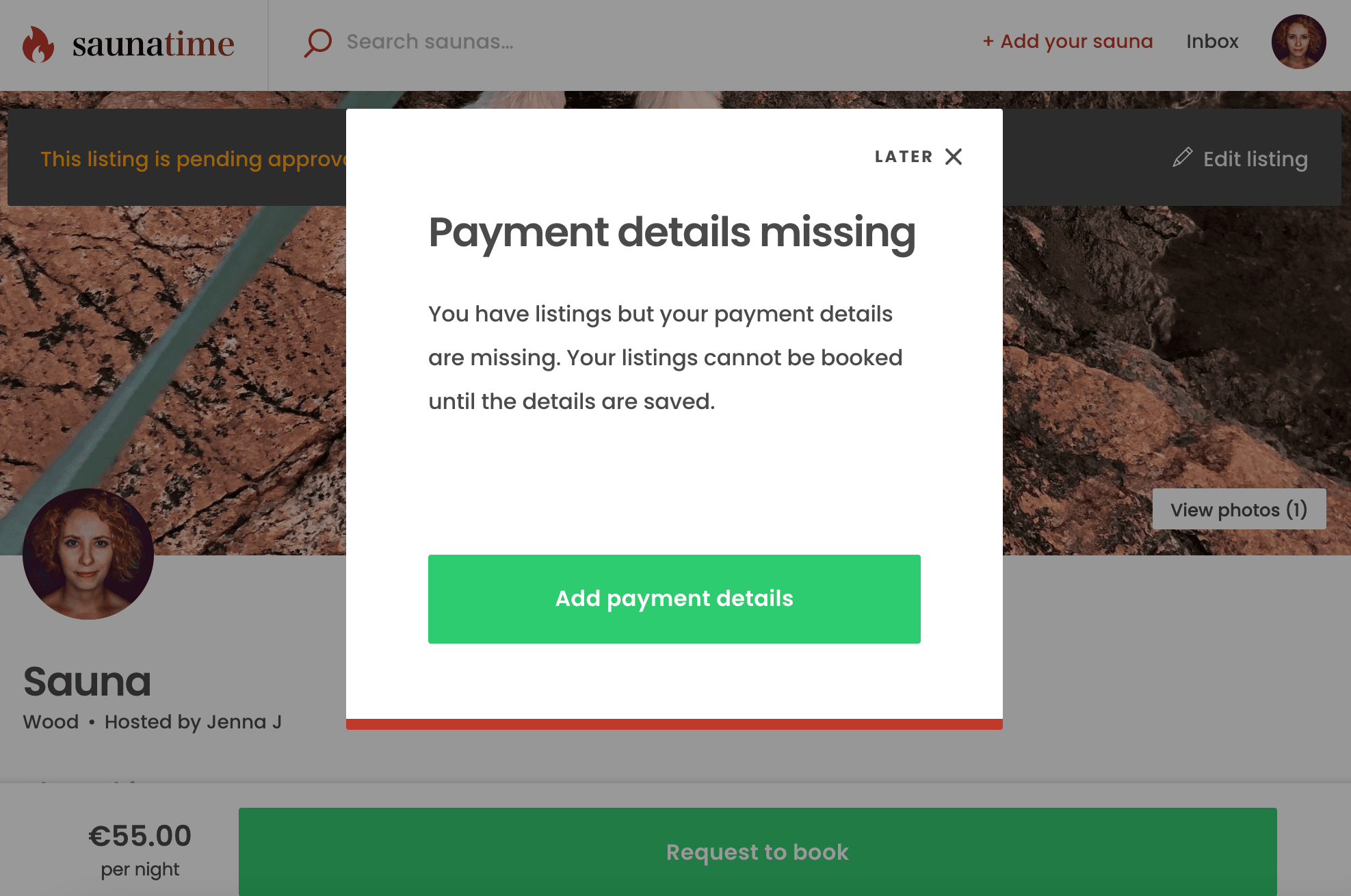

Payment details missing
