Customize image sizes

Flex's custom image variants functionality allows you to fine-tune image sizes to your marketplace's needs.

Table of Contents

Flex provides a selection of predefined image sizes, or variants as they are called, to be used in your marketplace website. However, when none of the predefined variants suits your needs, a custom variant can be requested. In this how-to guide, we'll recap how to fetch different image variants. We'll also take a look at how to define custom image variants when Flex's predefined variants don't offer the dimensions that work best in by your marketplace.

Image variants in Flex

A quick recap on how to request image variants: Image variants are defined using a Flex concept called sparse attributes. They can be used to declare what attributes of a given resource is returned for a resource. For example, the following query parameter passed in listings search query to the JS SDK: 'fields.image': ['variants.landscape-crop', 'variants.landscape-crop2x'].

Viewing vertical content

Like mentioned, the image variants above are used on the search page to present search results. However, those image variants do not suit all needs. This may be the case when listing images tend to have some vertical content. Let's say we are building a clothes sharing marketplace. If we use the variants mentioned above, we may end up with search results page like this:

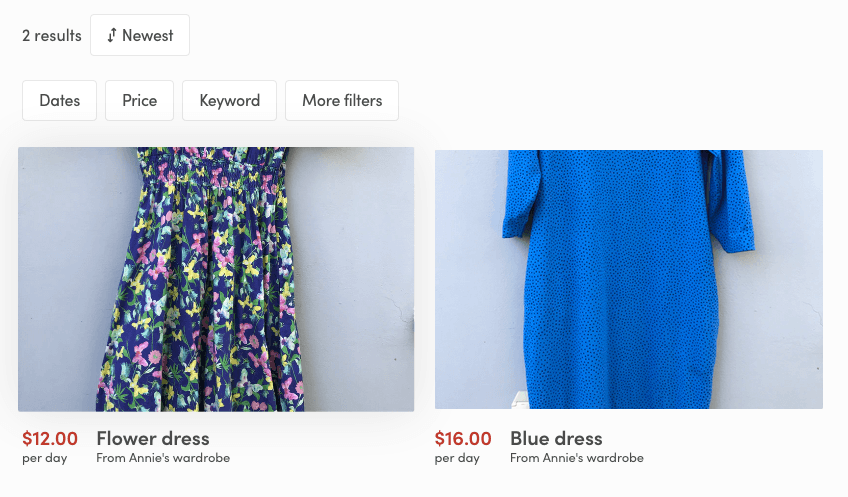

Landscape variants on tall images

The selected image variants crop out the images in an undesired way. To present dresses in the search page, we will need to change the image variants that are fetched for the page.

Using custom variants

To present dresses well in listing images we would need an image in portrait mode. However, none of the predefined image variants offer us a portrait image that would be a good fit for tall images. Thus we will need to use custom image variants to define our own image variant. Custom image variants, like the predefined variants, are requested using sparse attributes. What's different with custom variants is that the requester will decide the variant name and will provide and accompanying imageVariant.* parameter that describes the variant dimensions and how is the original image fitted to those dimensions. For example:

'fields.image': ['variants.my-variant']
'imageVariant.my-variant': 'w:400;h:800;fit:scale'

See custom image variants in the Flex Marketplace API reference for more information on the custom variant description syntax.

Let's now update our marketplace website to use image variants that work better with pictures of clothing. What we are looking to do, is change the aspect ratio of the images presented on the search page. In the picture above the image ratio is 3:2. Let's change that to 2:3 and see if that would work better.

First off, make sure that your sdkLoader has util imported from the Flex SDK and exported from the file:

└── src
    └── util
        └── sdkLoader.js
const { createInstance, types, transit, util } = exportSdk;

export { createInstance, types, transit, util };

This allows us to use a utility function provided by the SDK to define image variants as objects.

Next up, we'll need to define new image variants. The component that shows the image in the search page uses a source set of two images so let's replace the current 3:2 variants with two 2:3 ones: portrait-crop and portrait-crop2x. This is done by updating the SearchPage.duck.js file:

└── src
    └── containers
        └── SearchPage
            └── SearchPage.duck.js

Import the sdkLoader in the top of the file:

import { util as sdkUtil } from '../../util/sdkLoader';

And update the loadData function to define the new image variants:

export const loadData = (params, search) => {
  const queryParams = parse(search, {
    latlng: ['origin'],
    latlngBounds: ['bounds'],
  const { page = 1, address, origin, ...rest } = queryParams;
  const originMaybe = config.sortSearchByDistance && origin ? { origin } : {};
  return searchListings({
    perPage: RESULT_PAGE_SIZE,
    include: ['author', 'images'],
    'fields.listing': ['title', 'geolocation', 'price'],
    'fields.user': ['profile.displayName', 'profile.abbreviatedName'],
-   'fields.image': ['variants.landscape-crop', 'variants.landscape-crop2x'],
+   'fields.image': ['variants.portrait-crop', 'variants.portrait-crop2x'],
+   'imageVariant.portrait-crop': sdkUtil.objectQueryString({
+     w: 400,
+     h: 600,
+     fit: 'crop',
+   }),
+   'imageVariant.portrait-crop2x': sdkUtil.objectQueryString({
+     w: 800,
+     h: 1200,
+     fit: 'crop',
+   }),
    'limit.images': 1,

Next we'll need to tell the listing card component to load the newly defined image variants. In ListingCard perform the following change:

└── src
    └── components
        └── ListingCard
            └── ListingCard.js
            └── ListingCard.module.css
- variants={['landscape-crop', 'landscape-crop2x']}
+ variants={['portrait-crop', 'portrait-crop2x']}

Finally, update the aspect ratio in ListingCard.module.css:

.aspectWrapper {
- padding-bottom: 66.6667%; /* 3:2 Aspect Ratio */
+ padding-bottom: 150%; /* 2:3 Aspect Ratio */
  background: var(--matterColorNegative); /* Loading BG color */

Now we have images that suit the content of the marketplace:

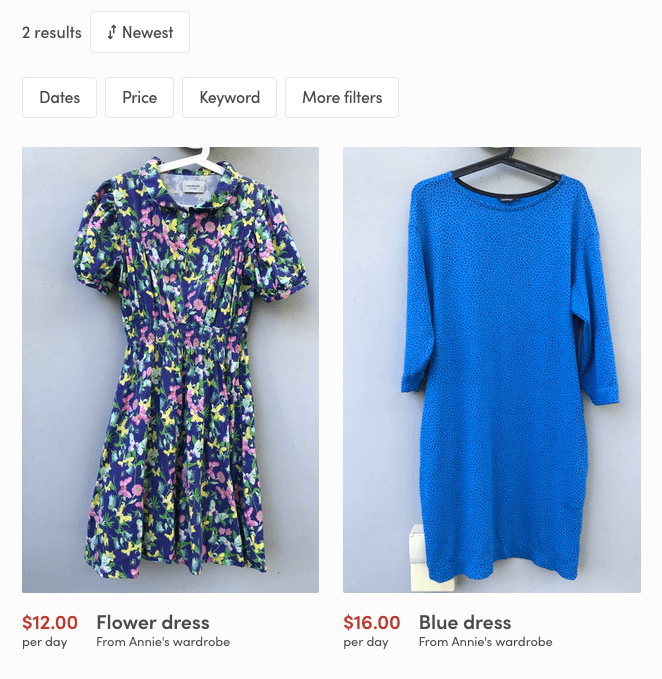

Portrait variants on tall images

In order to make sure that the ListingCard component renders correctly everywhere, make sure to fetch the 2:3 image variants we used here on every page where the ListingCard component is used. Furthermore, the changes listed in this how-to guide can be applied to other components that view listing images too. The .aspectWrapper class name is usually a good search keyword when finding all components that need to be updated.
